Ichimoku Kinko Hyo (Ichimoku Cloud) Indicator Explanation

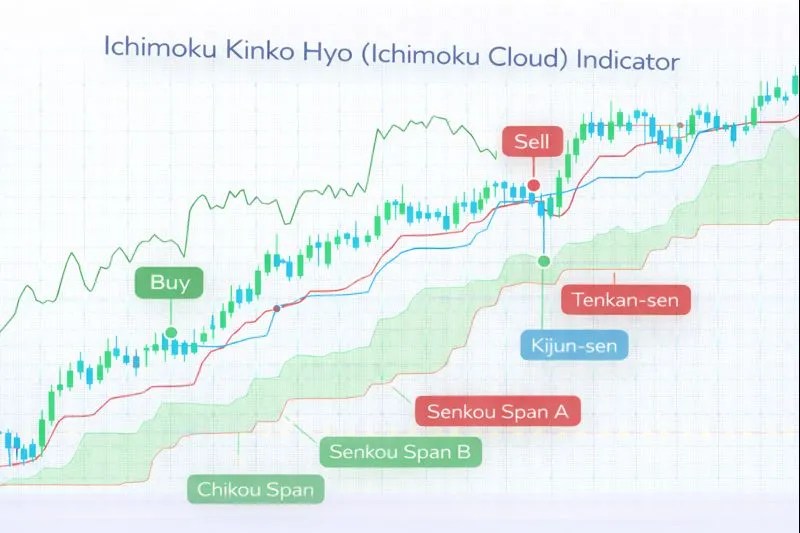

The Ichimoku Kinko Hyo (Ichimoku Cloud) is a comprehensive trend indicator that provides multiple levels of support and resistance, trend direction, and momentum signals in a single system. Developed by Goichi Hosoda, a Japanese journalist, in the late 1930s and refined over 30 years, Ichimoku translates to "one glance equilibrium chart," reflecting its ability to show multiple aspects of market analysis at once. The indicator consists of five lines: Tenkan-sen (Conversion Line), Kijun-sen (Base Line), Senkou Span A (Leading Span A), Senkou Span B (Leading Span B), and Chikou Span (Lagging Span). The area between Senkou Span A and B forms the "Kumo" (cloud), which acts as dynamic support and resistance.

How Ichimoku Works: Ichimoku calculates five key lines: Tenkan-sen = (Highest High + Lowest Low) / 2 over 9 periods, Kijun-sen = (Highest High + Lowest Low) / 2 over 26 periods, Senkou Span A = (Tenkan-sen + Kijun-sen) / 2, plotted 26 periods ahead, Senkou Span B = (Highest High + Lowest Low) / 2 over 52 periods, plotted 26 periods ahead, and Chikou Span = Current closing price, plotted 26 periods behind. The cloud (Kumo) is formed between Senkou Span A and B, with the cloud being bullish when Span A is above Span B, and bearish when Span B is above Span A. Price above the cloud indicates an uptrend, while price below the cloud indicates a downtrend. The cloud thickness represents support/resistance strength.

When to Use Ichimoku:

• Comprehensive Trend Analysis: Ichimoku provides a complete picture of trend direction, support/resistance levels, and momentum in a single system. Price position relative to the cloud indicates trend direction, while cloud thickness shows support/resistance strength. This makes it ideal for multi-timeframe analysis and comprehensive market assessment.
• Dynamic Support and Resistance: The Kumo (cloud) acts as dynamic support in uptrends and dynamic resistance in downtrends. Price bouncing off the cloud can signal trend continuation, while price breaking through the cloud can signal trend reversal or acceleration. The cloud's thickness indicates the strength of support/resistance.
• Tenkan/Kijun Crossover Signals: When Tenkan-sen crosses above Kijun-sen, it generates a bullish signal, and when it crosses below, it generates a bearish signal. These crossovers, combined with cloud position, provide clear entry and exit signals for trend-following strategies.

Advantages:

• Provides comprehensive market analysis in a single system, combining trend direction, support/resistance, and momentum signals. This reduces the need for multiple indicators and simplifies trading decisions.
• The cloud (Kumo) provides dynamic support and resistance levels that adapt to changing market conditions, making it more reliable than static levels. The cloud thickness indicates support/resistance strength.
• Works effectively across multiple timeframes and asset classes, including stocks, forex, commodities, and cryptocurrencies. The indicator is particularly useful for medium to long-term trend following and multi-timeframe analysis.

Limitations:

• Ichimoku can be complex for beginners, with five lines and cloud analysis requiring understanding of multiple components. The system has many rules and interpretations that must be learned.
• The indicator may produce false signals in ranging or sideways markets when price oscillates around the cloud, leading to whipsaws. The system works best in clearly trending markets.
• Ichimoku requires historical data (52 periods for Senkou Span B) to calculate properly, which means it may not be fully effective in the first 52 periods of a chart. Some signals require waiting for confirmation.

In summary, Ichimoku is a comprehensive trend analysis system that provides multiple layers of market information, making it ideal for traders seeking a complete view of trend direction, support/resistance, and momentum. For comprehensive understanding, refer to Hosoda's original work on Ichimoku, Investopedia's Ichimoku guide, TradingView's Ichimoku documentation, and academic research on Japanese technical analysis methods published in journals such as the Journal of Financial Markets and the Review of Financial Studies.

import backtrader as bt

class IchimokuTrendStrategy(bt.Strategy):
    params = dict(
        tenkan_period=9,
        kijun_period=26,
        senkou_b_period=52,
        chikou_span=26
    )

    def __init__(self):
        # Calculate Ichimoku components
        tenkan_high = bt.ind.Highest(self.data.high, period=self.p.tenkan_period)
        tenkan_low = bt.ind.Lowest(self.data.low, period=self.p.tenkan_period)
        self.tenkan = (tenkan_high + tenkan_low) / 2

        kijun_high = bt.ind.Highest(self.data.high, period=self.p.kijun_period)
        kijun_low = bt.ind.Lowest(self.data.low, period=self.p.kijun_period)
        self.kijun = (kijun_high + kijun_low) / 2

        self.senkou_a = (self.tenkan + self.kijun) / 2
        self.senkou_b = (bt.ind.Highest(self.data.high, period=self.p.senkou_b_period) +
                         bt.ind.Lowest(self.data.low, period=self.p.senkou_b_period)) / 2

    def next(self):
        if not self.position:
            # Buy when price is above cloud, Tenkan > Kijun, and price bounces off cloud
            if (self.data.close[0] > self.senkou_a[0] and
                self.data.close[0] > self.senkou_b[0] and
                self.tenkan[0] > self.kijun[0]):
                self.buy()
        else:
            # Sell when price breaks below cloud or Tenkan crosses below Kijun
            if (self.data.close[0] < self.senkou_a[0] and
                self.data.close[0] < self.senkou_b[0]) or                (self.tenkan[0] < self.kijun[0] and self.tenkan[-1] >= self.kijun[-1]):
                self.sell()

# Usage
cerebro = bt.Cerebro()
cerebro.addstrategy(IchimokuTrendStrategy)
