ATR (Average True Range) Indicator Explanation

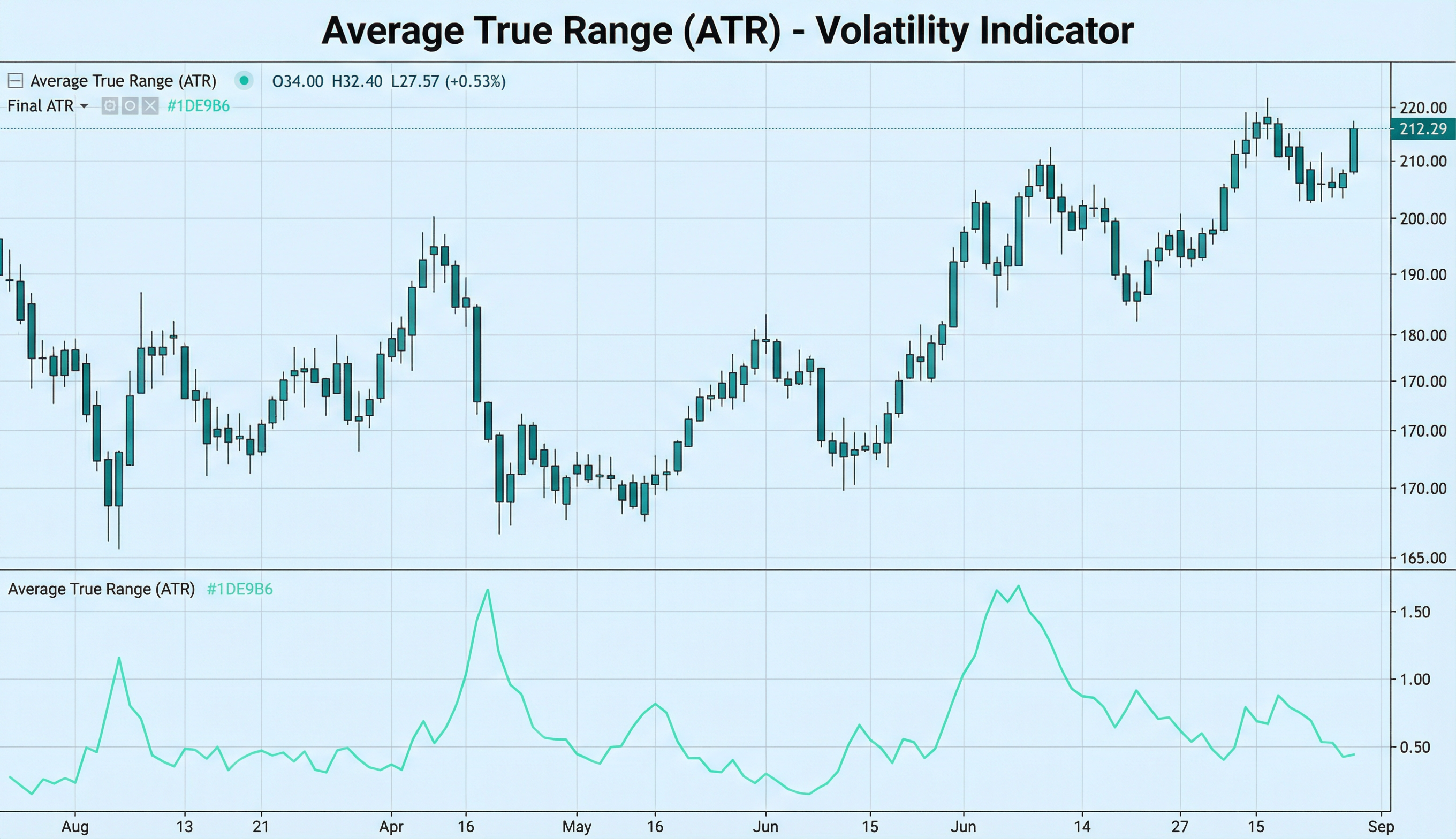

The Average True Range (ATR) is a popular technical indicator used to measure market volatility. Introduced by J. Welles Wilder Jr. in his 1978 book "New Concepts in Technical Trading Systems," ATR calculates the average range between the high and low prices of an asset over a specified period, incorporating any gaps between trading sessions. Unlike trend indicators, ATR does not indicate price direction but instead focuses solely on the degree of price movement.

How ATR Works: ATR is calculated by first determining the "True Range" (TR) for each period, which is the greatest of:

• Current high minus current low
• Absolute value of current high minus previous close
• Absolute value of current low minus previous close

The ATR is then the moving average of these True Range values over a user-defined period, commonly 14 periods. This calculation method accounts for price gaps between trading sessions, making ATR particularly useful for measuring volatility across different market conditions.

When to Use ATR:

• Volatility Assessment: Traders use ATR to gauge market volatility, helping adjust position sizes or stop-loss levels based on current market conditions.
• Setting Stop-Losses: ATR helps place dynamic stop-loss orders that adapt to market conditions, avoiding stops that are too tight or too loose relative to actual price movement.
• Risk Management: ATR can be used to identify periods of high or low volatility, allowing traders to adjust their risk exposure accordingly.

Advantages:

• Provides a clear measure of market volatility regardless of trend direction, making it applicable in both trending and ranging markets.
• Useful in various markets—stocks, forex, commodities, and cryptocurrencies—as volatility measurement is universal.
• Helps improve risk management by adjusting stops and position sizing based on actual market volatility rather than fixed percentages.

Limitations:

• ATR does not indicate market direction or trend strength, only the magnitude of price movement.
• High ATR values indicate volatility but not whether prices will move up or down, requiring combination with directional indicators.
• Should be combined with trend or momentum indicators for more effective trading decisions, as ATR alone does not provide entry or exit signals.

In summary, ATR is an essential indicator for traders focused on managing risk and understanding market volatility, making it a valuable tool in any trading strategy. For further reading, refer to Wilder's original work "New Concepts in Technical Trading Systems" (1978), Investopedia's ATR guide, TradingView's ATR documentation, and academic research on volatility measurement in financial markets such as studies published in the Journal of Financial Markets and Quantitative Finance journals.

import backtrader as bt

class ATRBreakoutStrategy(bt.Strategy):
    params = dict(
        atr_period=14,
        atr_threshold_multiplier=1.0
    )

    def __init__(self):
        self.atr = bt.ind.ATR(period=self.p.atr_period)
        self.atr_sma = bt.ind.SMA(self.atr, period=20)

    def next(self):
        if not self.position:
            # Enter only when ATR is above threshold
            if self.atr[0] > self.atr_sma[0] * self.p.atr_threshold_multiplier:
                if self._breakout_detected():
                    self.buy()
        else:
            # Exit logic
            if self._exit_condition():
                self.sell()

    def _breakout_detected(self):
        # Add breakout detection logic
        return True

    def _exit_condition(self):
        # Add exit condition logic
        return False

# Usage
cerebro = bt.Cerebro()
cerebro.addstrategy(ATRBreakoutStrategy)
